Simulating Ridgeback

Whether you actually have a Ridgeback robot or not, the Ridgeback simulator is a great way to get started with ROS robot development. In this tutorial, we will go through the basics of starting Gazebo and Rviz and how to drive your Ridgeback around.

Installation

To get started with the Ridgeback simulation, make sure you have a working ROS installation set up on your Ubuntu desktop, and install the Ridgeback-specific metapackages for desktop and simulation:

sudo apt-get install ros-kinetic-ridgeback-simulator ros-kinetic-ridgeback-desktop

Launch Gazebo

Gazebo is the most common simulation tool used in ROS. Ridgeback’s model in Gazebo include reasonable approximations of its dynamics, including wheel slippage, skidding, and inertia. To launch simulated Ridgeback in a simple example world, run the following command:

roslaunch ridgeback_gazebo ridgeback_world.launch

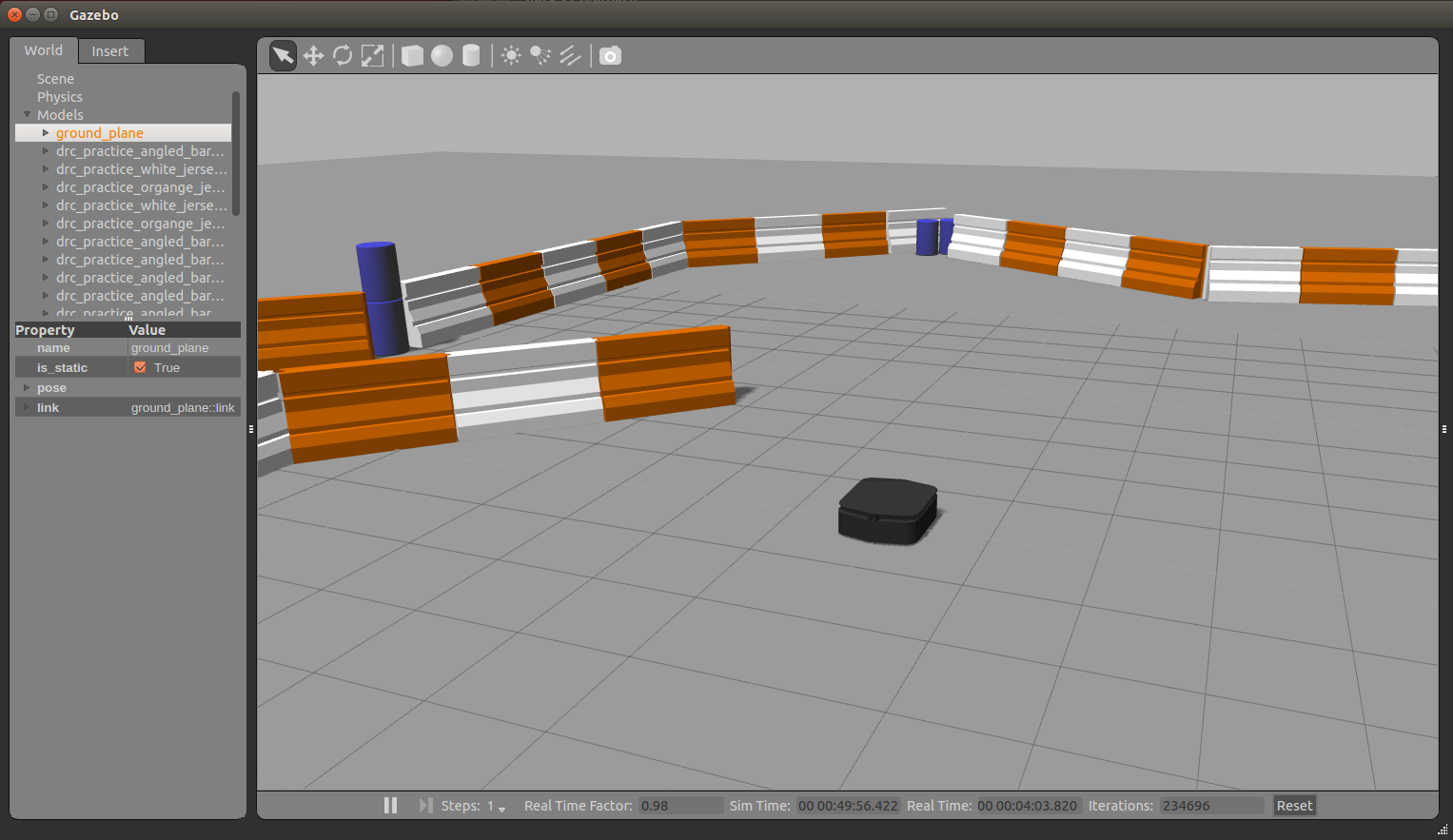

You should see the following window appear, or something like it. You can adjust the camera angle by clicking and dragging while holding CTRL, ALT, or the shift key:

The window which you are looking at is the Gazebo Client. This window shows you the “true” state of the simulated world which the robot exists in. It communicates on the backend with the Gazebo Server, which is doing the heavy lifting of actually maintaining the simulated world. At the moment, you’re running both the client and server locally on your own machine, but some advanced users may choose to run heavy duty simulations on separate hardware and connect to them over the network.

Launch rviz

The next tool we will encounter is rviz. Although superficially similar in appearance to Gazebo, rviz has a very different purpose— unlike Gazebo, which shows the reality of the simulated world, rviz shows the robot’s perception of its world, whether real or simulated. So while Gazebo won’t be used with your real Ridgeback, rviz is used with both.

You can using the following launch invocation to start rviz with a pre-cooked configuration suitable for visualizing any standard Ridgeback config:

roslaunch ridgeback_viz view_robot.launch

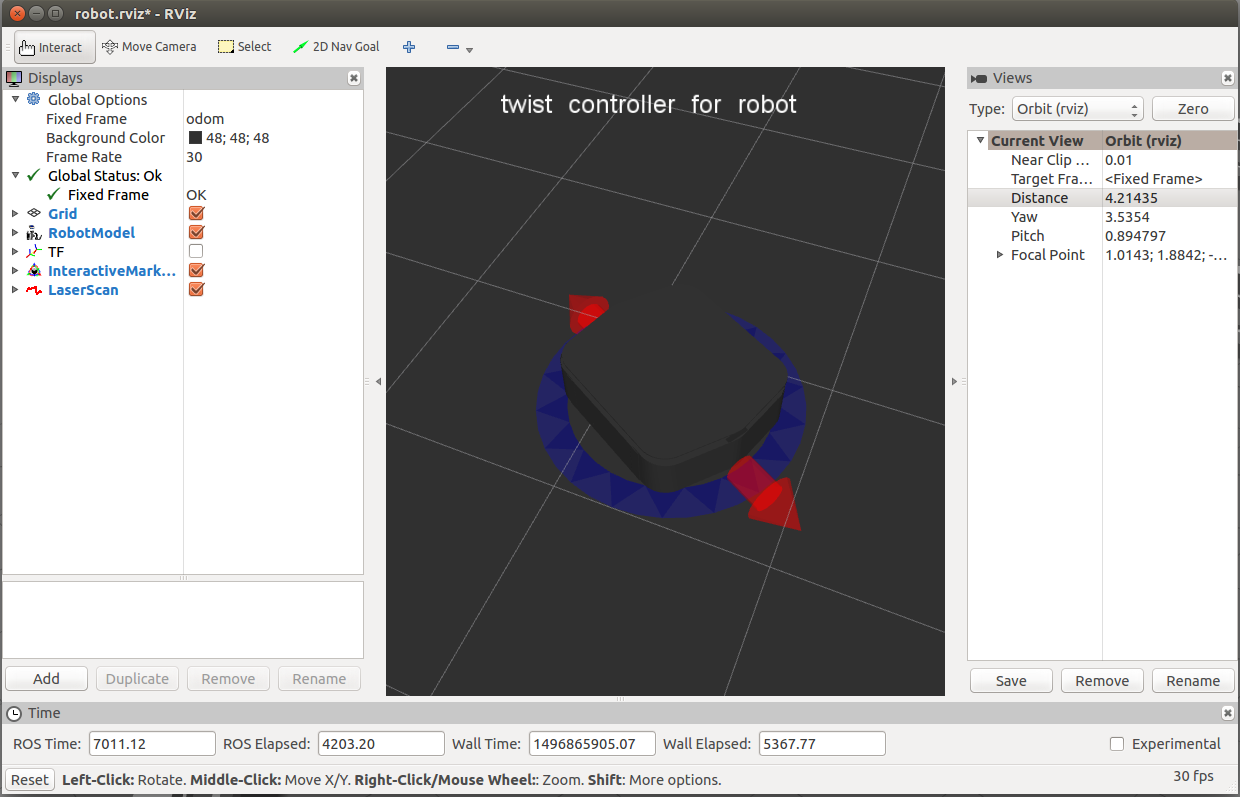

You should see rviz appear:

The rviz display only shows what the robot knows about its world, which presently, is nothing. Because the robot doesn’t yet know about the barriers which exist in its Gazebo world, they’re not shown here.

Driving Ridgeback

What is shown, however, is Ridgeback’s interactive markers. These are the simplest way to command your robot to move around. If you don’t see them in your rviz display, select the Interact tool from the top toolbar. You should see red arrows and a blue circle appear around the Ridgeback model.

Drag the red arrows in Rviz to move in the linear x and the blue circle to move in the angular z. Rviz shows you Ridgeback moving relative to its odometric frame, but it is also moving relative to the simulated world supplied by Gazebo. If you click over to the Gazebo window, you will see Ridgeback moving within its simulated world. Or, if you drive real Ridgeback using this method, it will have moved in the real world.

Once you start your own development, have your nodes send geometry_msgs/Twist commands to the cmd_vel topic to drive Ridgeback, either real or simulated. This is the standard ROS interface to differential-drive and holonomic ground vehicles.

You can also use a game controller to drive your robot. Connect your controller using either a USB cable or Bluetooth as appropriate and then launch the teleop node by running:

roslaunch ridgeback_control teleop.launch joy_dev:=/dev/input/js0

Replace /dev/input/js0 with the joy device you wish to use as input. By default ridgeback_control accepts input from /dev/input/ds4x unless another device is specified. If you use a PS4 controller, you can install the python-ds4drv package through apt to install the appropriate udev rules to map your PS4 controller’s js* device to /dev/input/ds4x:

sudo apt-get install python-ds4drv

If you use a different game controller, e.g. an Xbox controller or Logitech F710 you will need to specify the device using the joy_dev:=/dev/input/js* argument, described earlier.

Regardless of the controller, Axis 0 controls the robot’s side-to-side movement, Axis 1 controls the robot’s forward/backward velocity, and Axis 2 controls the robot’s steering. Buttons 4 and 5 act as enable and enable-turbo respectively. On common controllers these correspond to the following physical controls:

Axis/Button	Physical Input	PS4	F710	Xbox One
Axis 0	Left thumb stick horizontal	LJ	LJ	LJ
Axis 1	Left thumb stick vertical	LJ	LJ	LJ
Axis 2	Right thumb stick horizontal	RJ	RJ	RJ
Button 4	Left shoulder button or trigger	L1	LB	LB
Button 5	Right shoulder button or trigger	R1	RB	RB

Visualizing Sensors

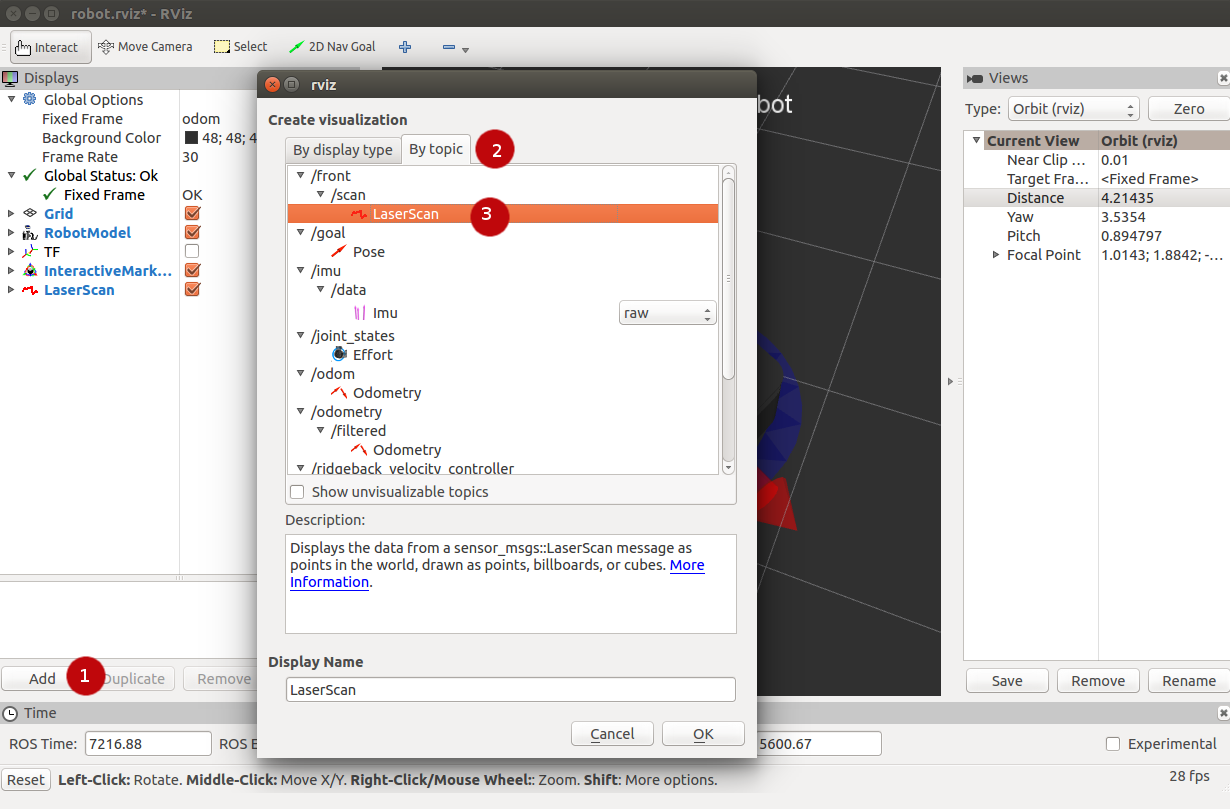

The rviz tool is capable of visualizing many common robotic sensors, as well as other data feeds which can give us clues as to what the robot is doing and why. A great place to start with this is adding the LaserScan plugin to visualize the laser scans being produced by the simulated LMS111. In the left panel, click the “Add” button, then select the “Topics” tab, and then select the front/scan topic:

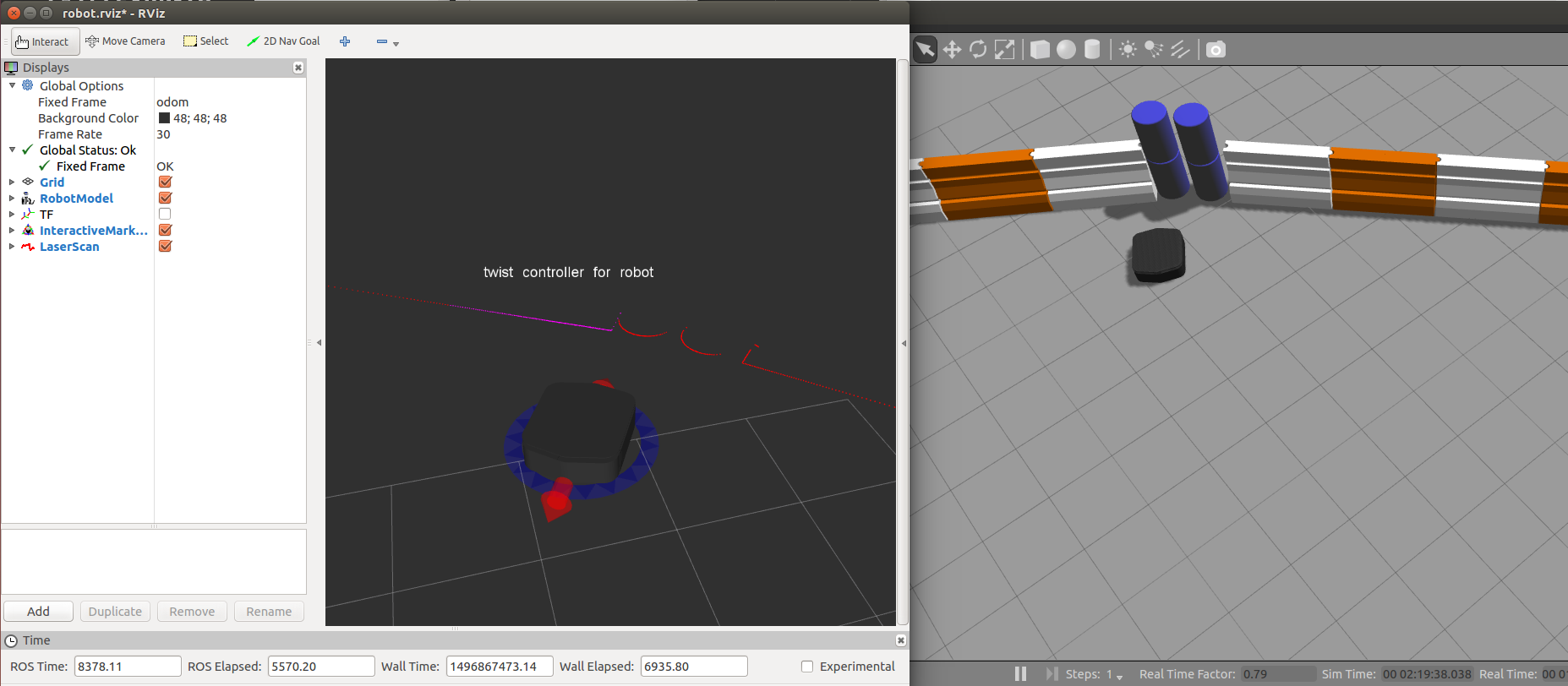

Click OK, and you should see laser scan points now visible in the rviz window, relative to the robot:

If you use the interactive markers to drive around, you’ll notice that the laser scan points move a little bit but generally stay where they are. This is the first step toward map making using gmapping, which is covered in the next tutorial, Navigating with Ridgeback.
